X-ray inspection systems

SXRF-4080 Series X-Ray

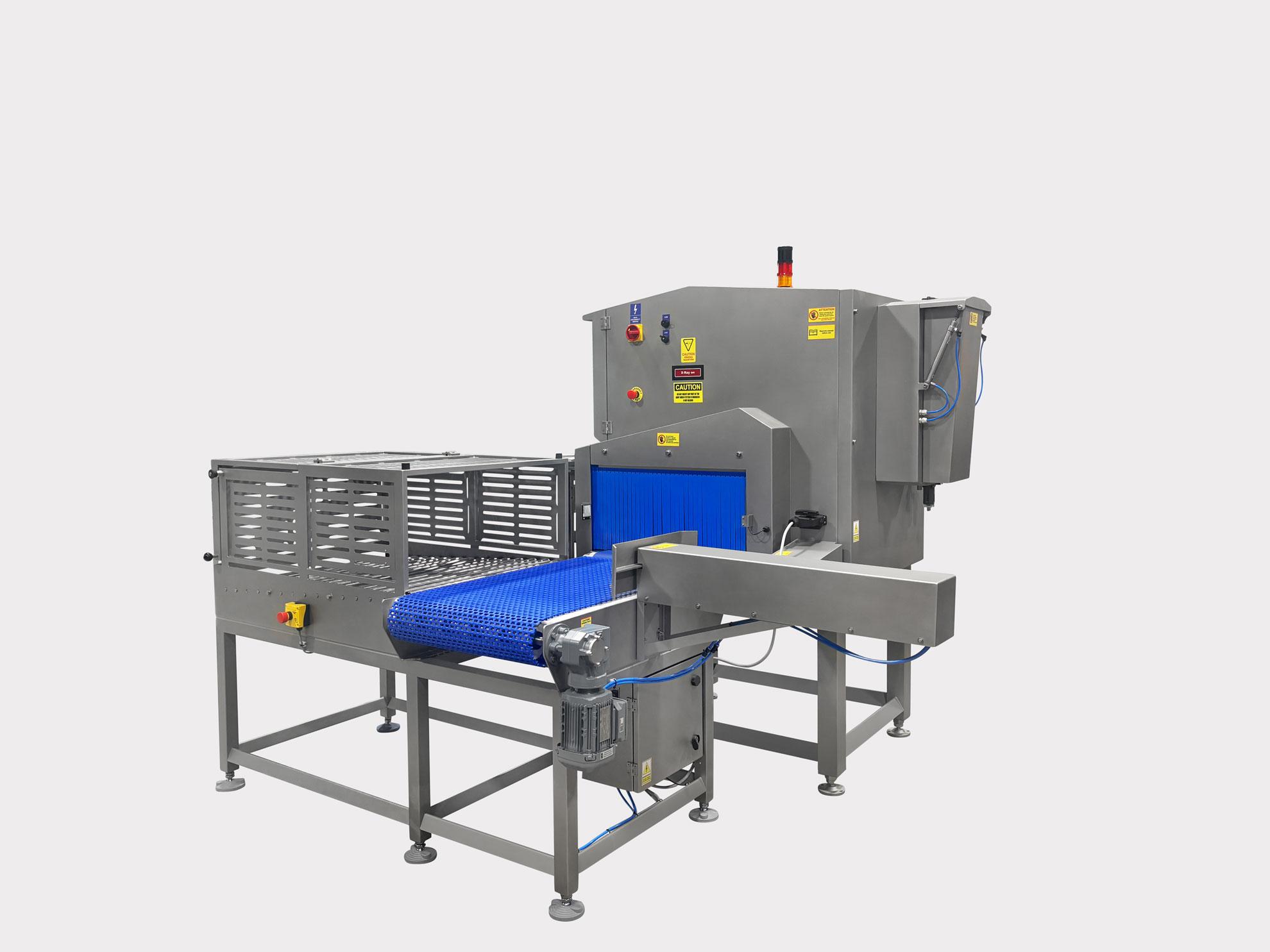

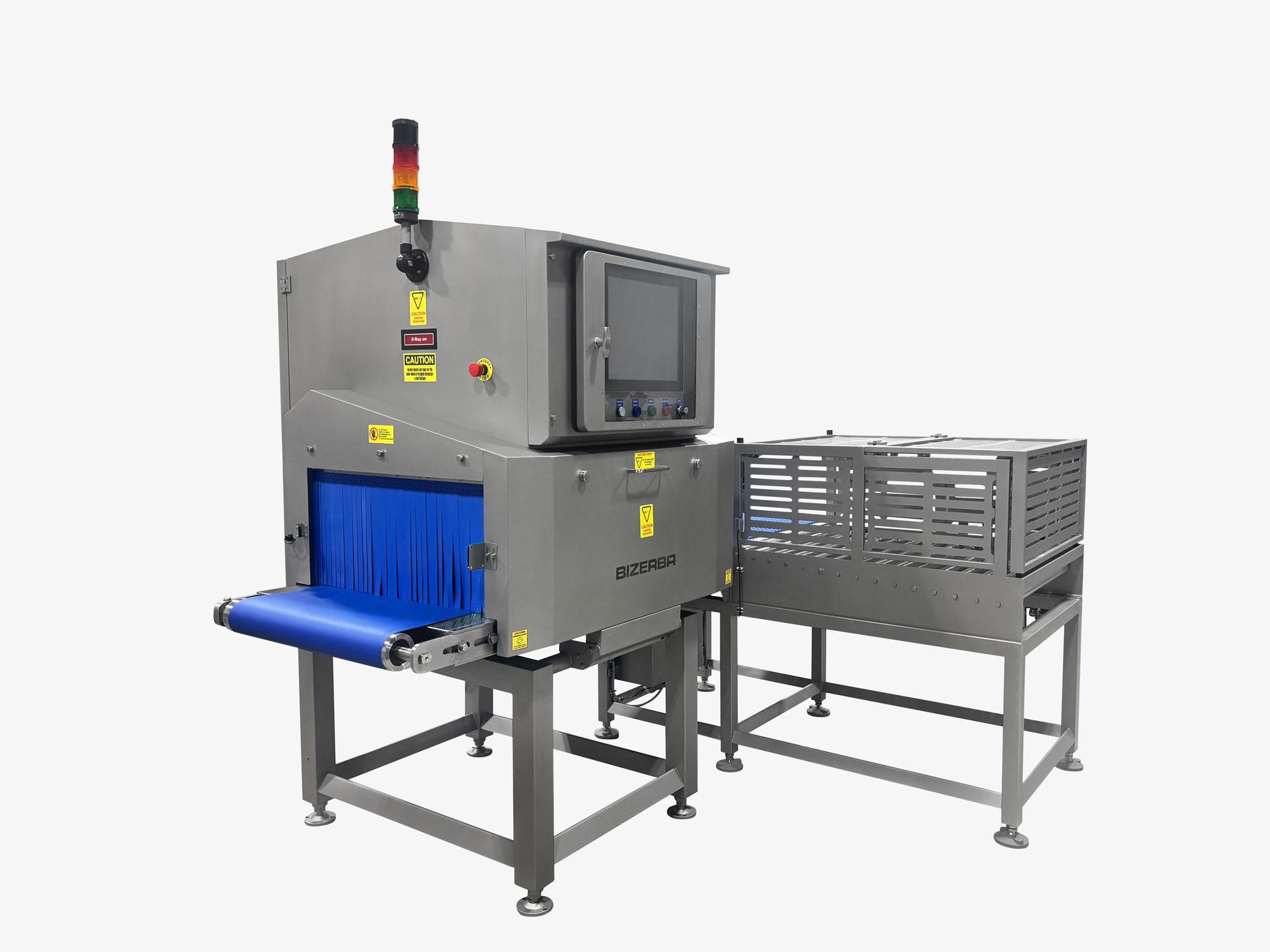

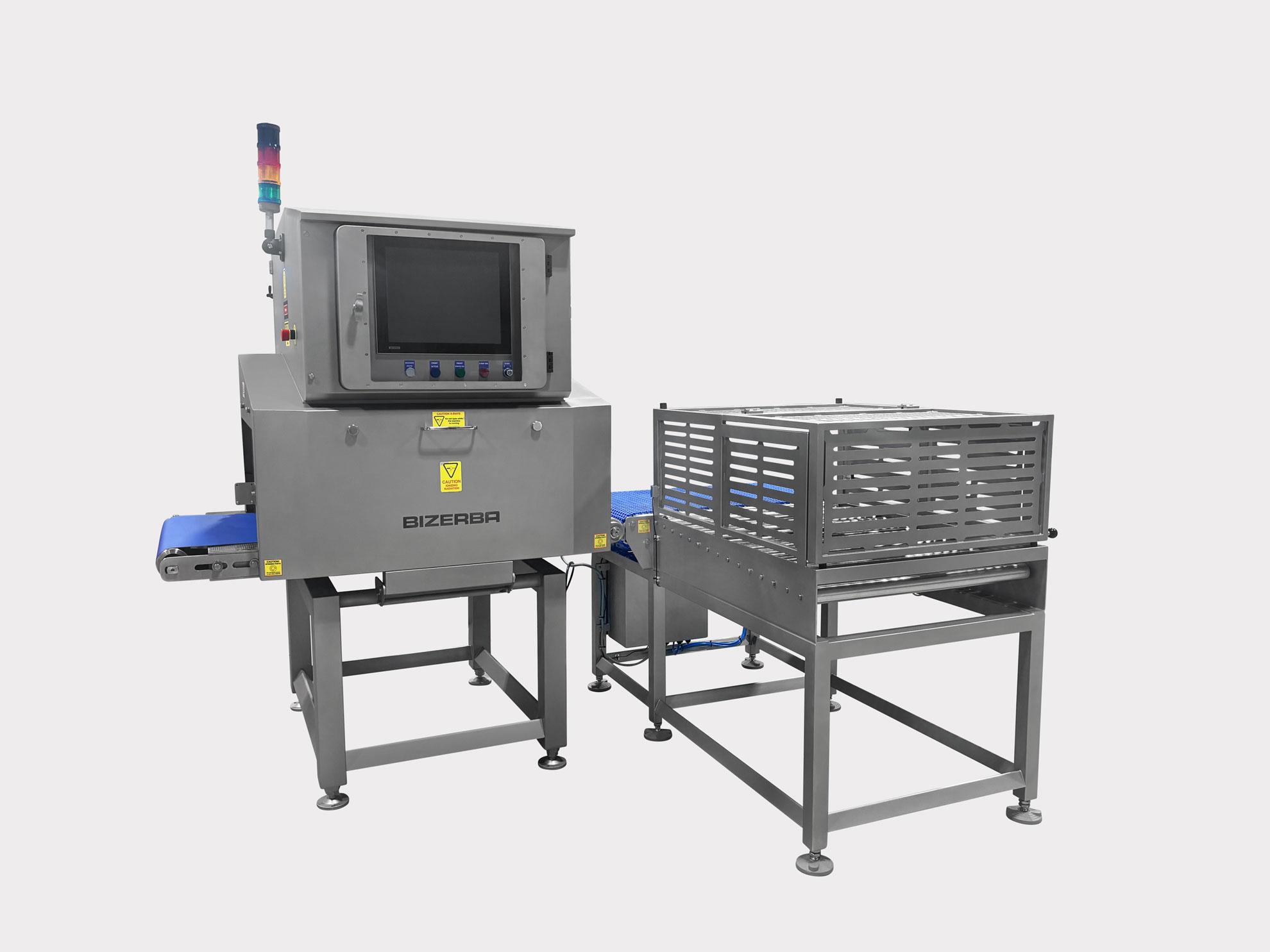

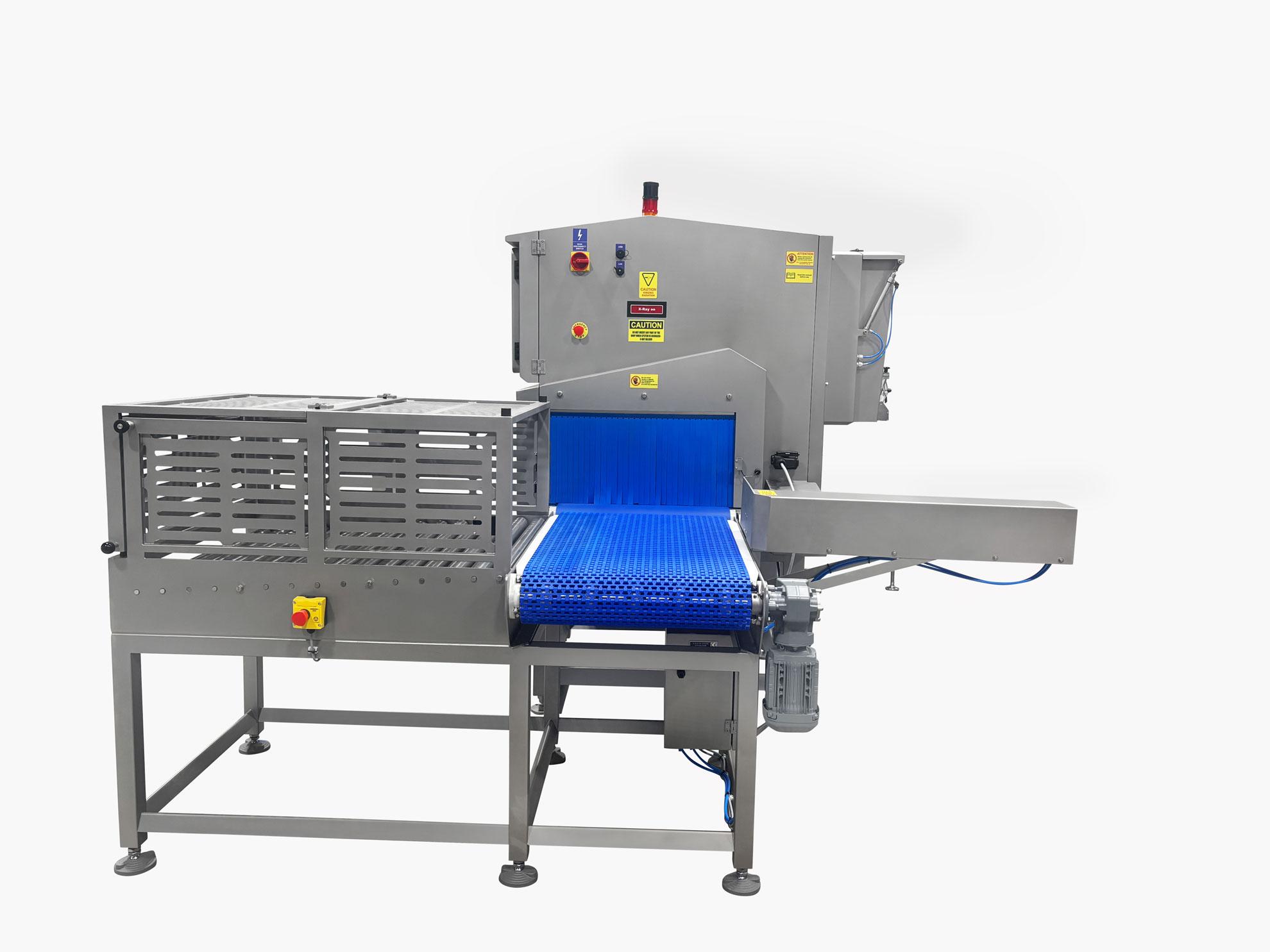

The Bizerba SXRF-4080 Series offers scalable dual-energy X-ray inspection for unpackaged food products across diverse production environments. With advanced AI-powered contaminant detection, hygienic design, and multiple conveyor length options, it ensures maximum safety and adaptability for high-throughput operations.

The Bizerba SXRF-4080 Series combines intelligent dual-energy imaging with AI-based detection to deliver powerful inspection capabilities for various product sizes. Designed to meet the rigorous demands of modern food processing, each model in the 4080 series shares a common detection platform while offering different conveyor lengths to fit existing line configurations.


The system’s dual-energy detector with 0.4 mm pitch excels at identifying both dense and low-density foreign materials - including bone, metal, rubber, plastic, and glass - without interrupting product flow. AI-powered algorithms adapt in real time to product variations, reducing false rejects and minimizing manual adjustments.


Engineered for hygienic, washdown-ready operation, the SXRF-4080 Series features stainless steel construction with IP65, IP66, or IP69K ratings, tool-free maintenance, and quick curtain and belt removal. Optimized for single or multi-lane setups, it supports high-speed inspection and integrates seamlessly with smart production environments via OPC UA, ERP, or MES systems.

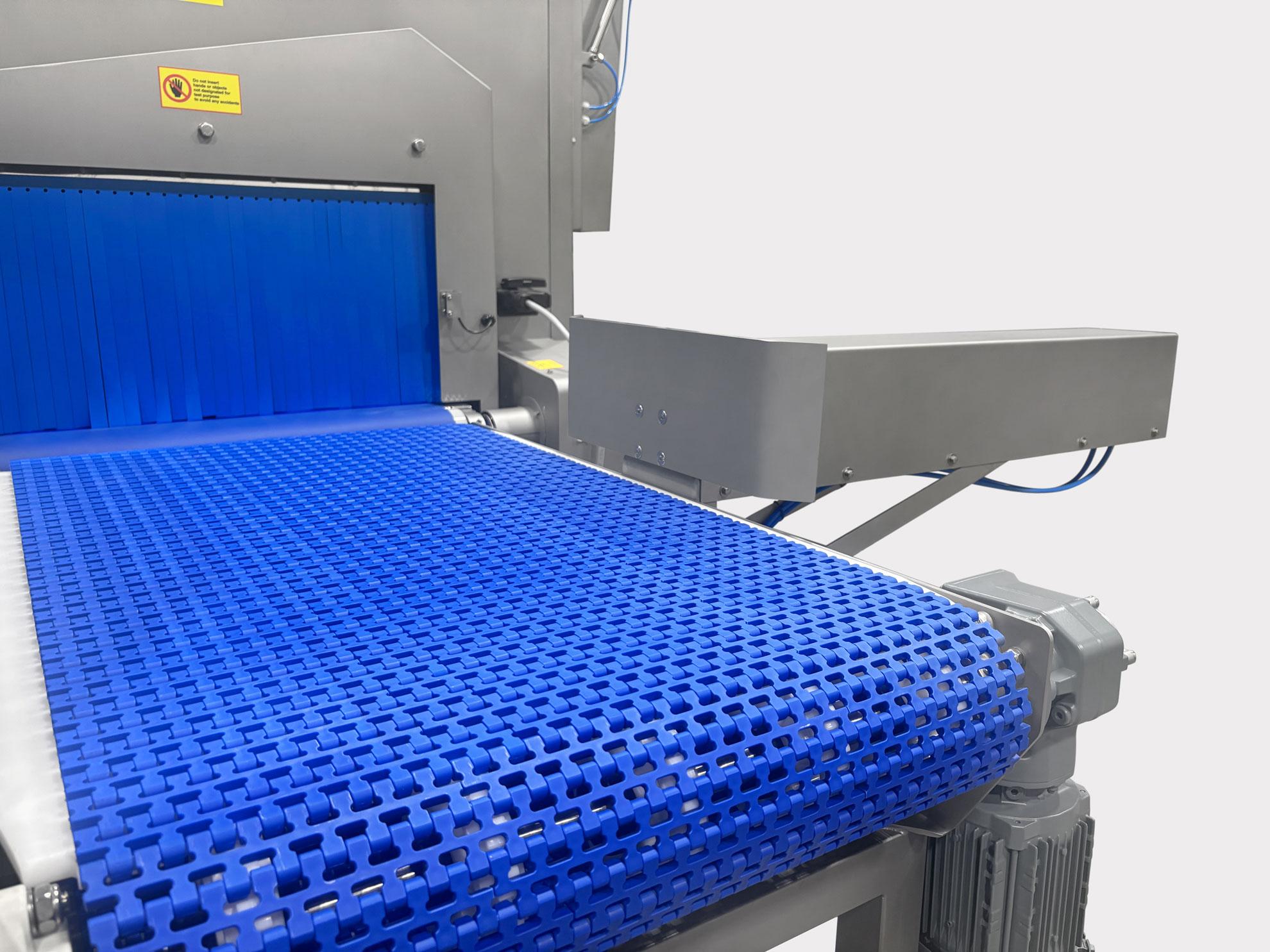

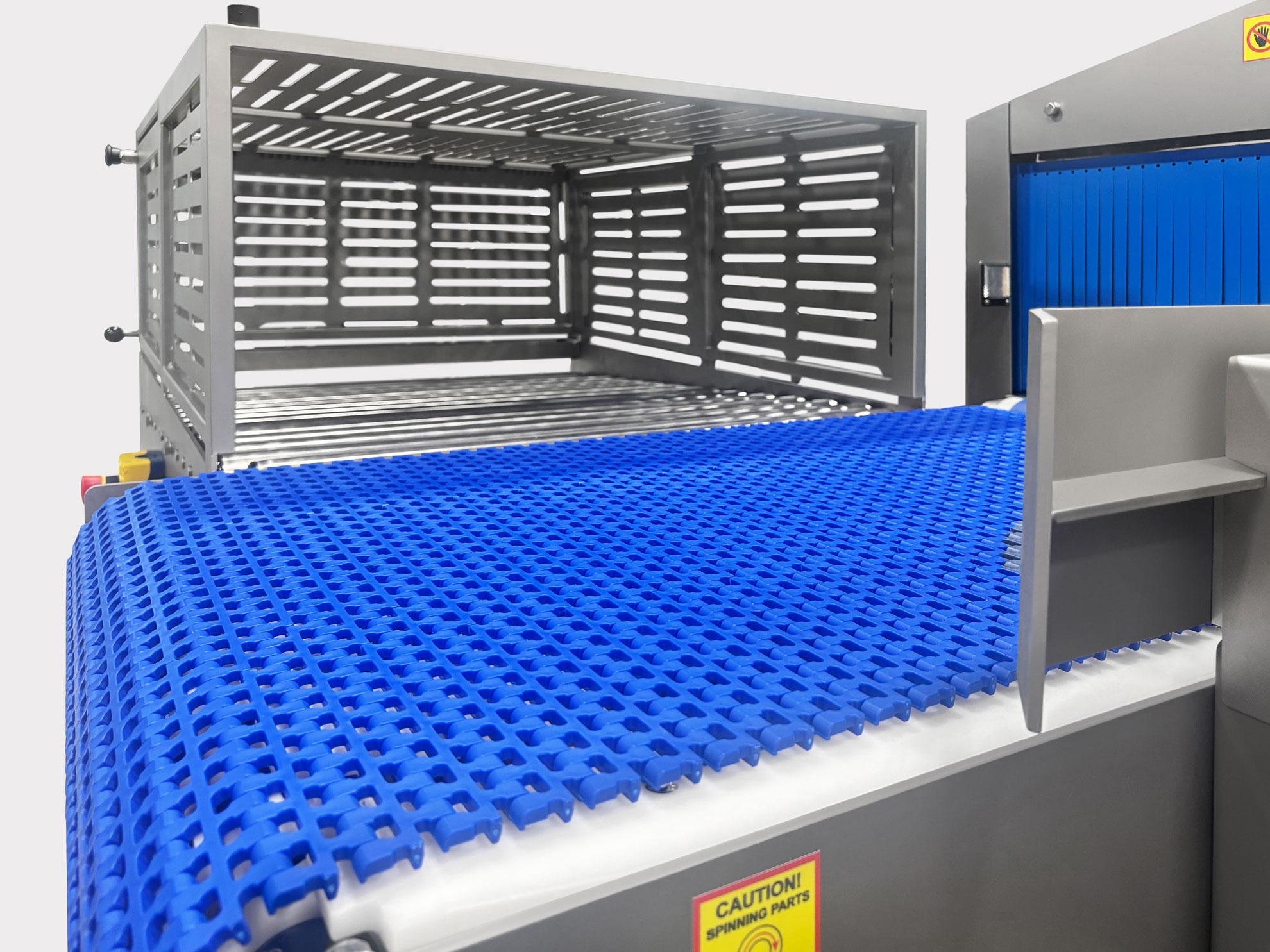

Available in multiple conveyor lengths (600 mm, 900 mm, 1200 mm, or custom), the SXRF-4080 Series fits into a wide range of layouts - delivering reliable, automated foreign object detection and inline quality assurance.

Highlights

  • Dual-energy X-ray technology detects bone, metal, glass, rubber, and plastic
  • AI-powered detection minimizes false rejects and operator intervention
  • Available in 4 standard conveyor lengths for flexible line integration
  • IP65/IP66/IP69K stainless steel housing with tool-free belt and curtain removal
  • Supports single or multi-lane inspection for high-speed production
  • Integrated shape, count, and flow detection for enhanced quality control
  • Automated diagnostics and intuitive touchscreen interface reduce downtime


Product images and technical information may differ and may not be available in your country.

Areas of use

  • High-speed deboning lines – Detects bones and contaminants in trim before marination
  • Seafood and fish processing – Identifies shells, bones, and metal in fillets or ground product
  • Meat trim inspection – Enhances upstream food safety and reduces rework
  • Bulk flow packaging lines – Inline quality control before portioning, forming, or grinding
  • Chilled processing environments – Optional FROST system maintains performance in low temperatures

Details & Options

  • AI-powered software with automatic self-learning product database
  • Dual-energy detector with 0.4 mm pitch resolution
  • Stainless steel frame with IP65/IP66/IP69K protection ratings
  • Tool-free access to belts, curtains, and covers for easy cleaning
  • OPC UA, ERP, and MES connectivity for smart production environments

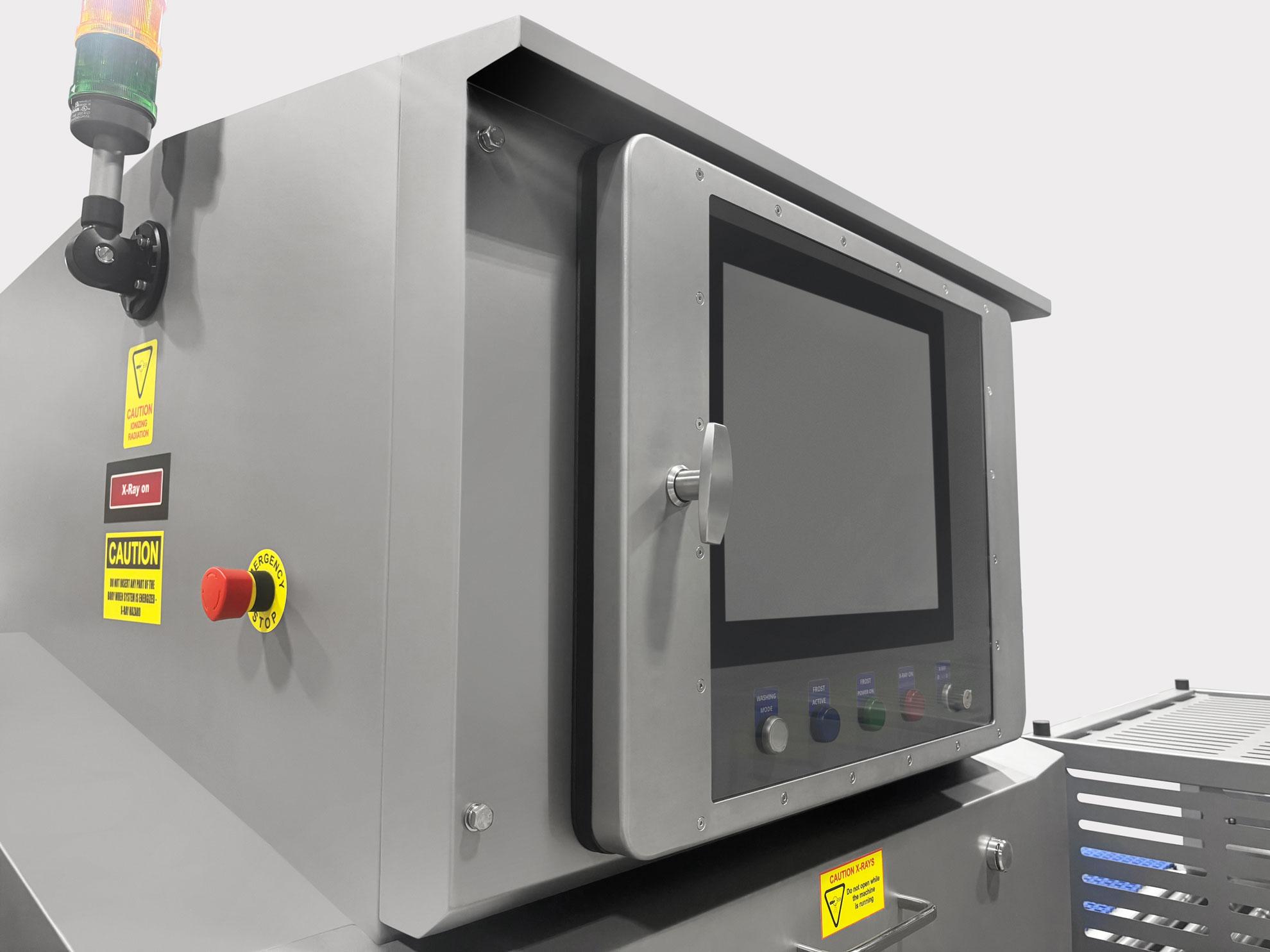

  • Windows 10 operating system with 17” touchscreen interface

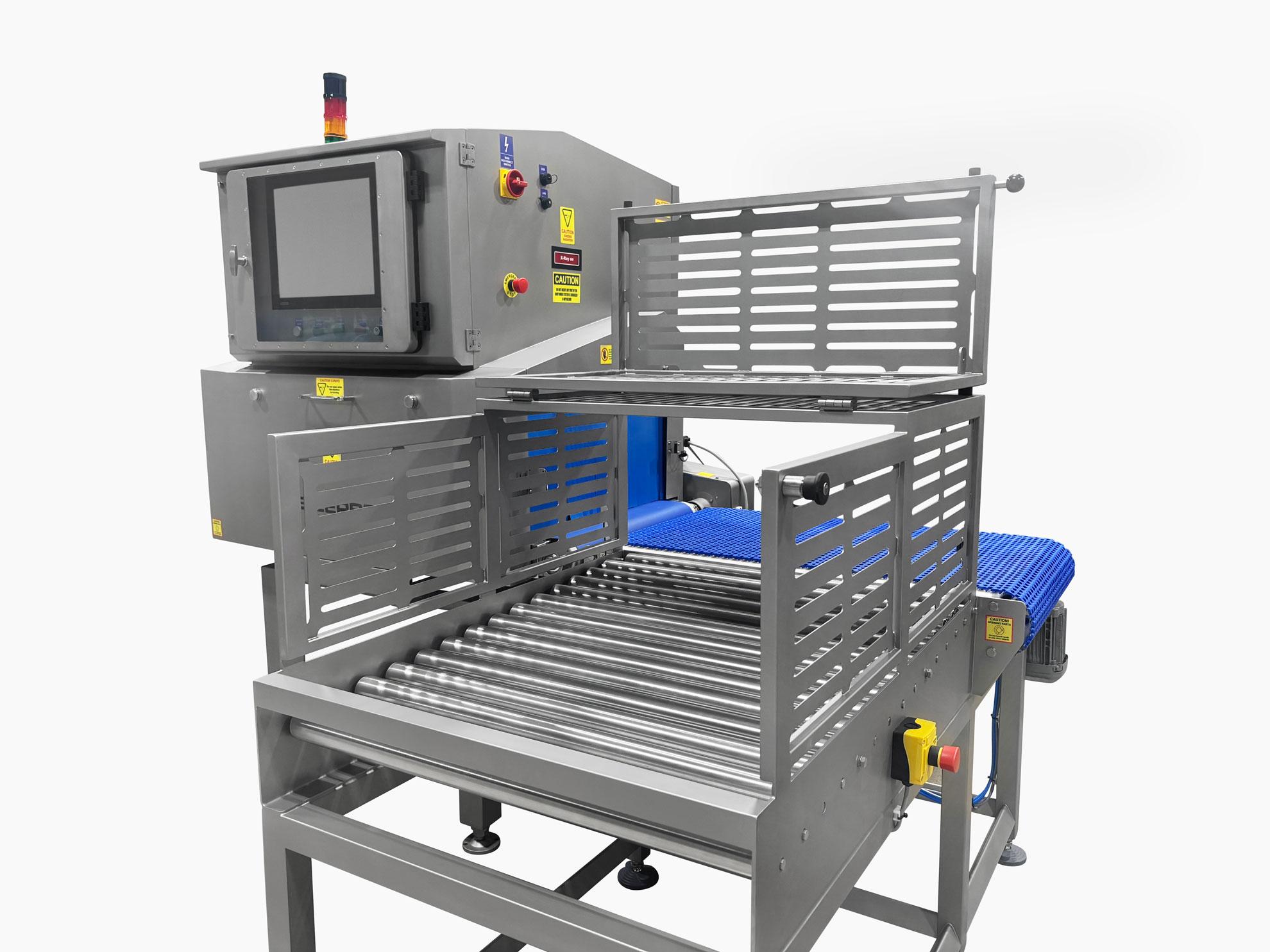

  • Automated Reject System – Ensures efficient removal of non-compliant products
  • Secure Rejection Options – Locking reject bins or run-off trays for controlled disposal
  • Flexible Detection Technology – Available with single energy, dual-energy, or advanced Direct Photon Counting detectors
  • Configurable Washdown Protection – Standard IP65, with optional upgrades to IP66 or IP69K
  • FROST Thermostat & Heating System – Prevents condensation and corrosion in low-temperature environments
  • OPC-UA Industrial Communication Protocol – Enables seamless data exchange and integration into smart production systems
For take away

Downloads

You can find operating instructions, software updates, licenses, service requests for your personal device in the Bizerba customer portal.
Technical Datasheet SXRF-4080series (540 KB)
